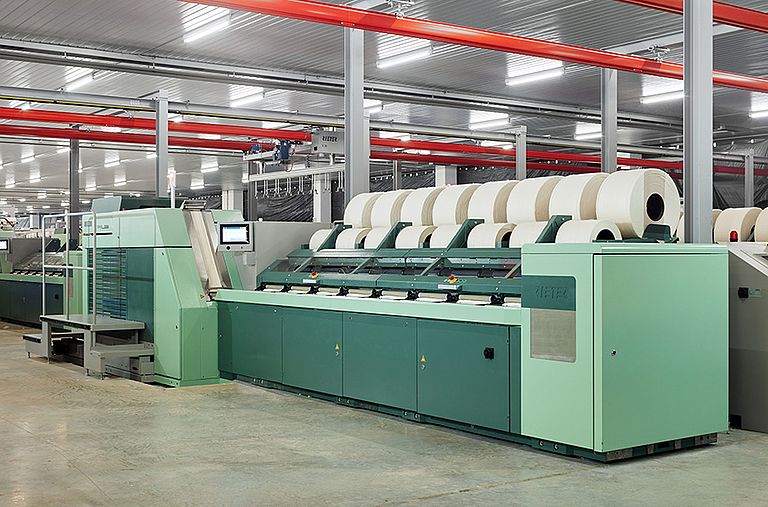

Penye Makinası E 90

The E 90 achieves maximum up to 100 kg/h combed sliver at 600 nips/min depending on the raw material, at the same time, RQM provides real-time data on sliver quality, detecting deviations early. Combined with the Human Machine Interface, it allows quick adjustments to maintain consistent sliver quality.

ROBOlap enables fully automated lap changing and batt piecing, reducing operator effort to a monitoring role. Efficiency increases by around 2% compared to semi-automated combers, and piecing quality is measurably better and more consistent than manual piecing.

On the E 90, the combing speed (stepless), the table tension and the batt tension can be changed on the display easily. The settings of the piecing index and eccentric setting can be adapted without opening the gearbox. The change of the detaching distance is possible with only three screws instead of six in E 86. In addition, the monitoring of the current index position on the display makes the E 90 more user friendly compared to the E 86. On top of that, the E 90 supports an easier setting of drafting distances thanks to the drafting unit DUC which is the same as in the draw frames.

The E 90 features a state-of-the-art Human Machine Interface that allows operators to adapt machine settings quickly and intuitively. Parameters can be changed easily and saved as recipes, which can then be replicated across other machines. Quality data can be reviewed, or errors can be resolved much easier as troubleshooting pages are available on the HMI. The HMI also supports USB connectivity and integration with ESSENTIAL, enabling centralized mill management and rapid response to market requirements.
