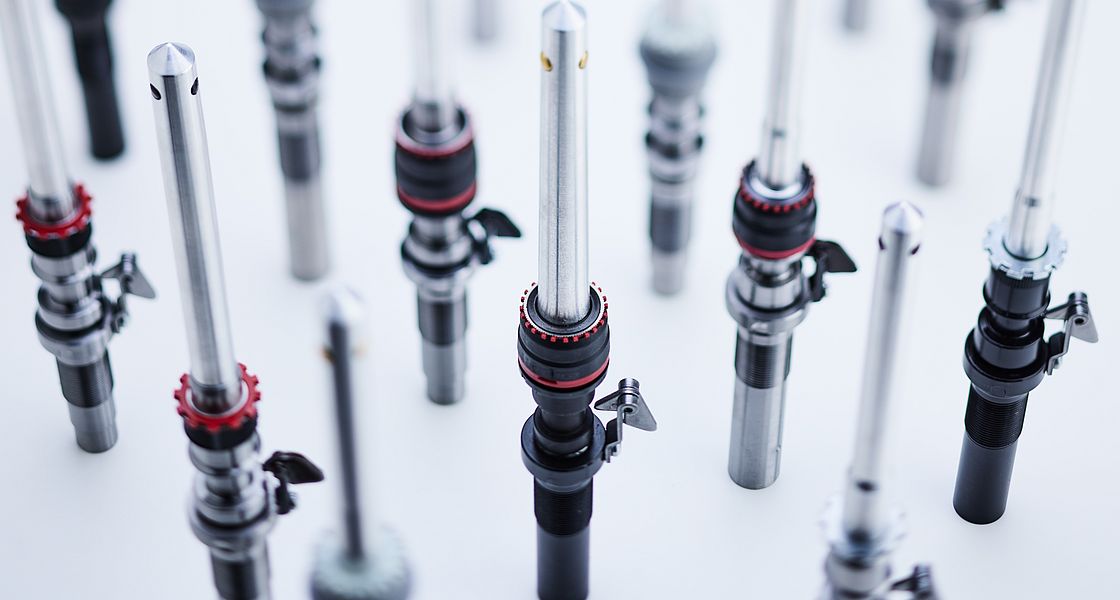

Spindles

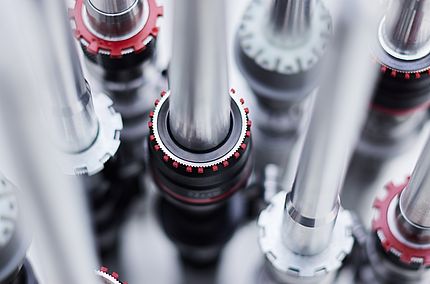

Novibra high speed spindles are equipped with patented one piece insert with two bearings – can be supplied with a wide range of the state-of-the-art cutting and clamping crowns.

Low vibration
Energy saving
Reduced maintenance
Long lubrication cycles
Long operation life time

Spindles HPS 68

Revolutionary HPS design of spindles changed classical ring spinning and opened new prospects for spinning at speeds up to 25 000 RPM. Till now this design has maintained its unbeatable position and became a synonym for high speed spindle design.

Applications:

for speeds up to 20 000 RPM (recommended speed reflects the noise level requirement)
for all materials Ne 14 – 100

Advantages:

minimum wharve diameter of 18.5 mm for highest spindle speeds at minimum speeds of driving elements
can be supplied to each type of ring spinning machine

Spindles NASA HPS 68

The most used spindle in premium spinning machines equipped with double damping for maximum vibration absorption at high speed. Features even lower vibration and noise level than standard HPS 68 model.

Applications:

recommended for speeds up to 25 000 RPM
for all material Ne 14 – 100

Advantages:

second damping system
superior dynamic performance
perceivable noise reduction
minimum wharve diameter of 18.5 mm for highest spindle speeds at minimum speeds of driving elements
can be supplied to each type of ring spinning machine

Spindles NASA HPS 68/3

Provides the same advantages as NASA HPS 68. In addition, unique footstep bearing diameter of 3 mm enables even higher energy saving than standard models.

Applications:

recommended for speeds up to 25 000 RPM
for all material Ne 14 – 100

Advantages:

reduction of energy consumption can be achieved at the same speed, or increase of the spindle speed with the same energy consumption is possible.
minimum wharve diameter of 18.5 mm for highest spindle speeds at minimum speeds of driving elements
can be supplied to each type of ring spinning machine with autodoffer

Spindles LENA

LENA stands for LE – low energy, NA – noise absorption. Energy saving spindle LENA has been designed for the highest speeds with the main goal of achieving lower energy consumption.

Applications:

recommended for speeds up to 25 000 RPM
for all material Ne 30 and finer
for tubes up to 210 mm

Advantages:

energy saving in the average of 4 – 6% thanks to reduced wharve dia and lesser friction of smaller bearings (both neck bearing and footstep)
the only spindle with 17.5 mm wharve dia in the market

Spindles L HPS 68

Special spindle designed for coarser counts and larger tubes ensures harder damping due to lowered and prolonged damping sleeve.

Applications:

max speeds up to 20 000 RPM, in practice depends on yarn count i.e. up to 16 000 RPM
for coarser counts all material
for longer tubes up to 250 mm

Advantages:

the only spindle for coarse count with 18.5 mm wharve dia in the market
can be supplied to each type of ring spinning machine

Bare Blade Spindles HPS 68

Spindle with traditional steel blade top part (without aluminium top part) for modernization of older ring spinning frames.

Application:

for speeds up to 16 000 RPM

Advantages:

possibility to have bare blade spindle with Novibra patented two bearing design without any change of tubes and thus also without change in the following processing of the yarn
