Fully automatic can transport system SERVOcan

Autonomous material flow for maximum efficiency

Reduced labor effort
Continuous and optimized material workflow
Precise and careful handling of cans for consistent quality

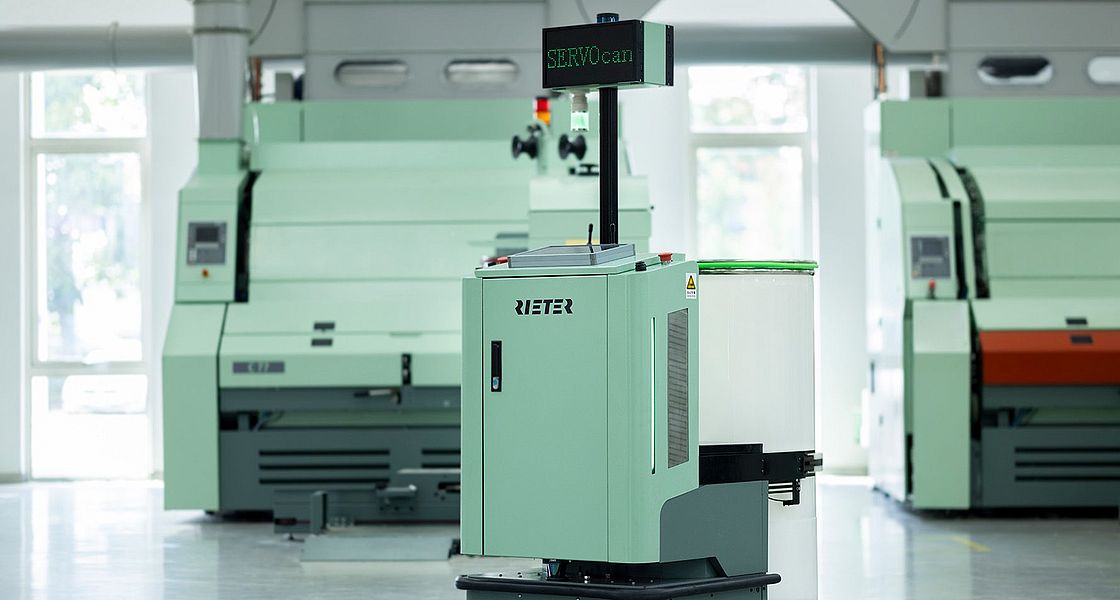

Introducing SERVOcan

The fully automatic can transport system SERVOcan is a flexible solution for the efficient and precise transfer of cans in a spinning mill with automated guided vehicles (AGV). By replacing manual transport, the system eliminates bottlenecks, reduces labor cost and ensures a continuous and optimized flow of materials. The can transport is designed for an easy integration into existing Manufacturing Execution Systems (MES) via standard interfaces. SERVOcan closes an automation gap in spinning mills and brings customers one step closer to the smart spinning mill.

SERVOcan key features

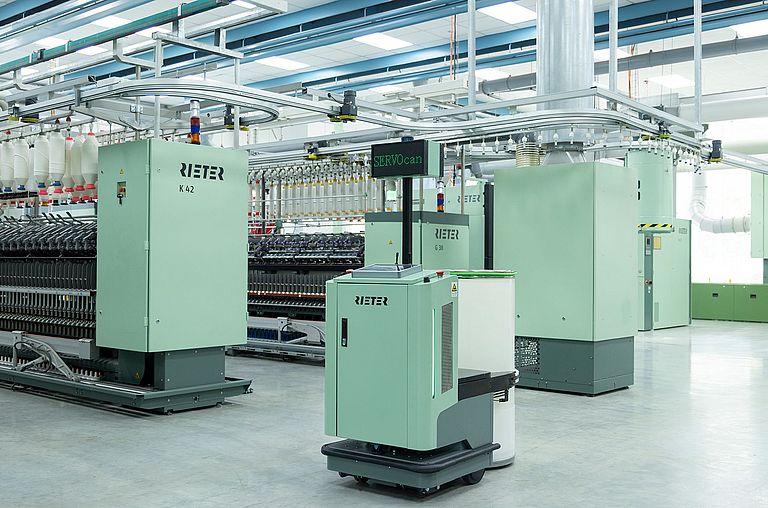

SERVOcan with spinning machines K 42, G 38 — Comprehensive can transport system from carding to end spinning

Efficient and precise can transport

SERVOcan is a comprehensive solution ranging from carding to end-spinning machinery. Automated guided vehicles (AGV) transport the cans between the machines a spinning mill.

The optimized material flow reduces manual workload to a minimum and saves operator costs.

State-of-the-art control methods ensure smooth and economical motion cycles of the cans and reduce waiting times between the machines.

Proven and stable components as well as the easy handling make SERVOcan a low-maintenance system.

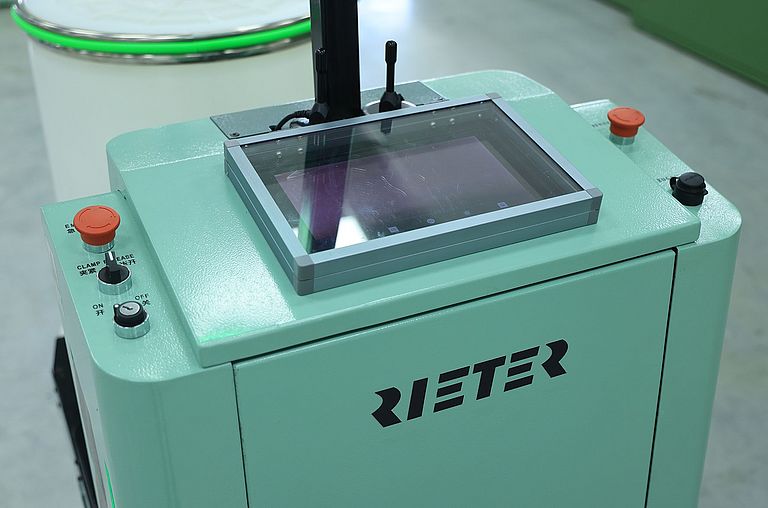

SERVOcan Process Control System — The Process Control System provides valuable data for process optimization.

Standardized processes for consistent quality

The fully automated can transport system prevents the faults that come with manual handling and assures consistent quality.

Damage of material and cans is prevented thanks to precise and careful handling of the slivers as well as exact positioning.

The Process Control System provides valuable data for process optimization. Full traceability of the material flow is ensured for quality control purposes.

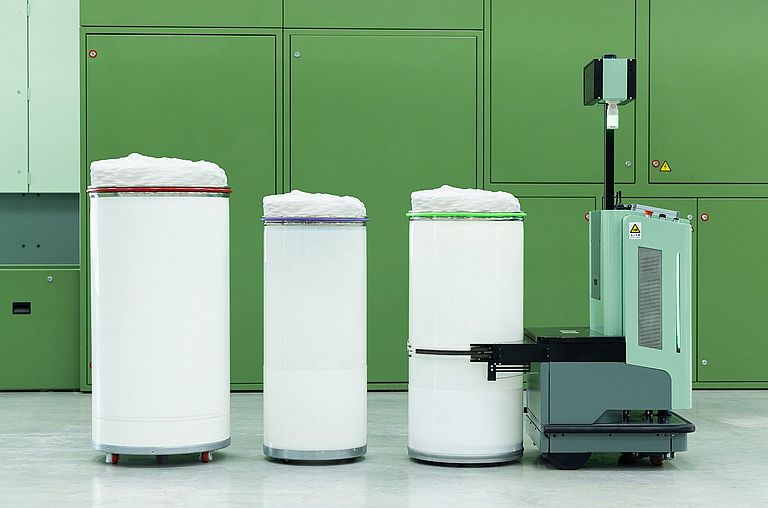

SERVOcan with compatible cans — SERVOcan is compatible with can sizes ranging from 450 mm to 1200 mm.

Adjustable to diverse production needs

The central fleet management software allows to easily adjust the number of can transport systems in operation. As a result, tasks and routes meet fluctuating production demands.

SERVOcan is compatible with light and heavy can sizes ranging from 450 mm to 1200 mm.

Real-time detection of sliver status makes full use of can capacity, as full or empty cans are immediately transported to the required location. The system flexibly adjusts to changing production needs.

Technical specifications

SERVOcan dimensions

Can dimensions [mm]	Length [mm]	Width [mm]	Height [mm]
500	1 080	720	1 910
600	1 130	735	1 910
1 000	1 290	1 100	1 910
1 200	1 515	1 300	1 910

Machine data

Feature	Description
Can size	1 200 mm, 1 000 mm, 600 mm, 500 mm (customized)
Navigation mode	LiDAR
Max. speed	72 m/min
Control voltage	DC 48 V
Safety system	Tier-3 non-contact LiDAR obstacle avoidance sensor + Emergency stop button + Tricolor safety warning light + Anti-collision bumper
Stopping accuracy	±10 mm
Charging mode	Options: manual battery replacement and automatic charging
Battery	LFP battery 48 V 48 Ah
Alarm	Acoustic and visual alarm
Driving mode and steering mode	Electronic control, differential drive
Safety sensor	Non-contact LiDAR
Can positioning	RGB-D Camera
Industrial monitoring camera	In fully automatic operation mode, monitor the position, quantity, and status of sliver cans.
Network communication	WiFi/5G
MES interface	Reserved

Downloads

Product Brochure SERVOcan (English)
PDF / 454 KB

Compatible machines and system extensions

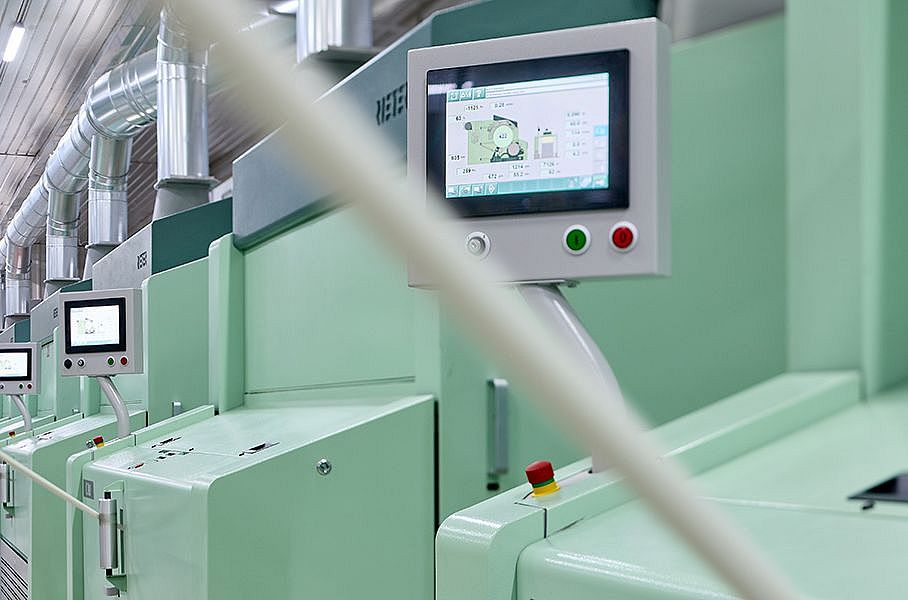

Card C 81

The most energy-efficient card on the market – produces up to 40% more sliver than any other card while maintaining excellent quality.

Explore

Draw Frame RSB-D 55 and Draw Frame SB-D 55

Rieter's latest single-head draw frames RSB-D 55 and SB-D 55 are designed for highest flexibility and productivity while ensuring top sliver quality.

Explore

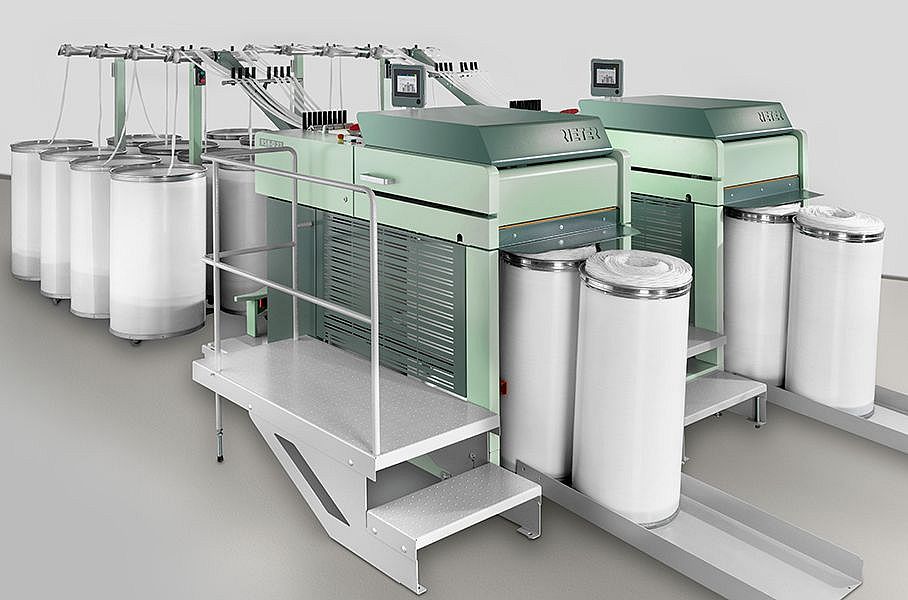

Autoleveler draw frame RSB-D 27

With two completely independent heads, the autoleveler draw frame RSB-D 27 achieves unmatched sliver quality and delivers with a delivery speed of up to 1 200 m/min. Its new level of robustness keeps the operating costs low, while its compact dimensions make it ideal for space-saving applications.

Explore

Comber E 90

The comber E 90 impresses thanks to its state-of-the-art technology components, increased productivity, and greater flexibility in terms of possible applications. The machine ensures a consistently high yarn quality at low conversion costs.

Explore

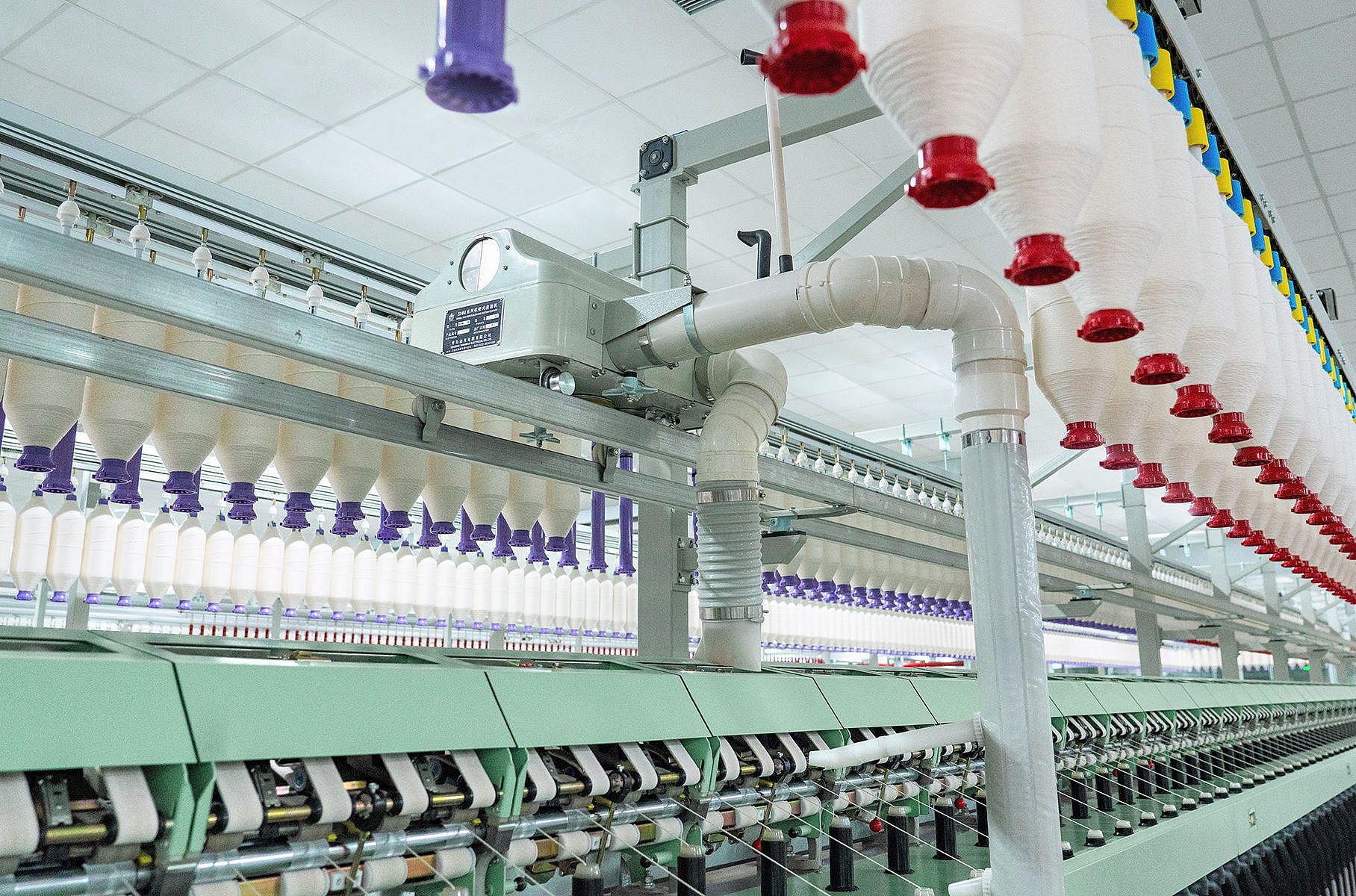

Fully automatic roving frame F 37
