Semi-Automated Rotor Spinning Machine R 37

Economic rotor spinning with more flexibility in raw material use
  1. More options for raw material selection
  2. High-volume production
  3. Low power consumption

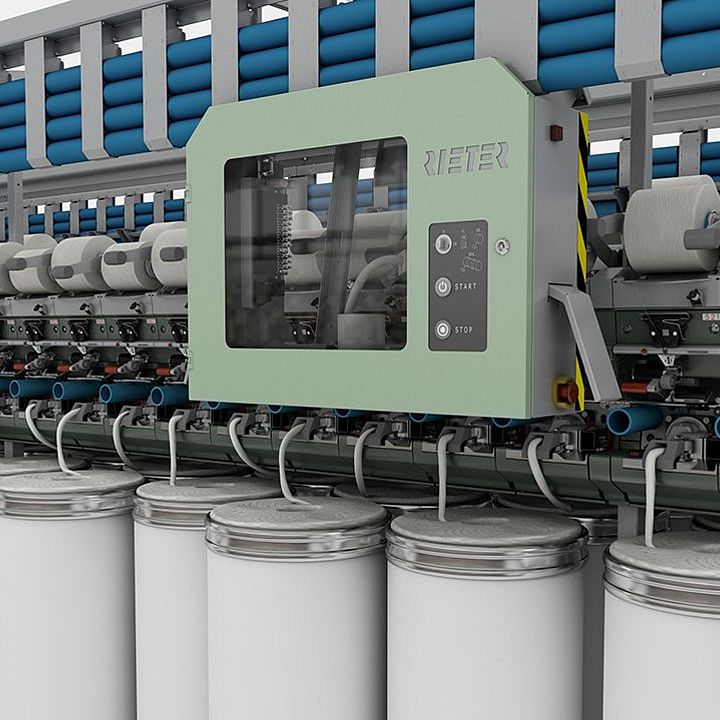

Rotor Spinning Machine R 37 with ROBOdoff

Introducing R 37

The rotor spinning machine R 37 has a new spinning box with adjustable trash extraction. This offers more flexibility when selecting the raw material. With up to 600 spinning positions, the R 37 ensures economical rotor spinning in the range Ne 3 to Ne 40 range.

Low energy consumption and simple, time-saving handling by operating personnel minimize production costs. The innovative AMIspin and optional AMIspin-Pro technologies ensure superior piecing quality. Fully independent machine sides provide high flexibility. The robot ROBOdoff, which is available as an option, automates package change.

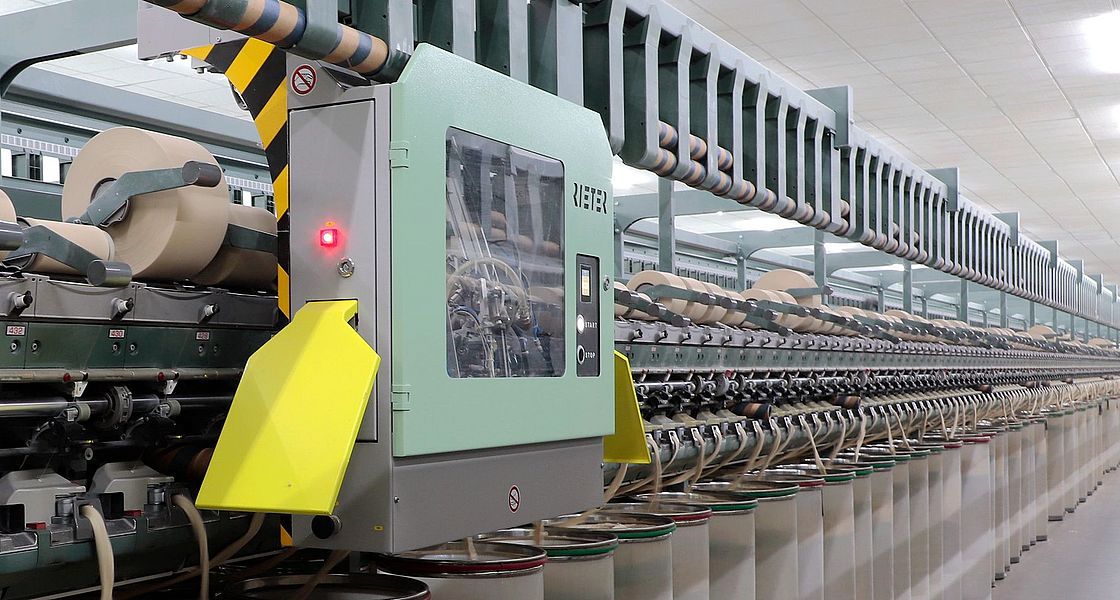

R 37 spinning machine, Guangrao

Made for high production

The excellent spinning stability of the R 37 ensures high-volume production at a high production speed. The potential is enormous: With up to 600 spinning positions, yarn can be produced at a delivery speed of up to 200 m/min.

The highly efficient drive system offers low power consumption. An optional energy monitoring device can assist to further optimize energy consumption.

With ROBOdoff, which is available as an option, full packages can be changed automatically with no interruption to the spinning process, eliminating the exhausting task of manual doffing. The ROBOdoff ensures consistent package length within the defined tolerances.

The exceptionally low working height of the R 37 combined with the AMIspin piecing devices facilitates work of operators. As a result, more spinning positions can be served by one operator.

Rotor Spinning Machine R 37 – Redesigned Spinning Box

Turning trash into treasure

The redesigned spinning box with exchangeable trash channels enables higher levels of trash extraction, which offers more options when selecting raw materials.

Optimized fiber flow results in outstanding spinning stability and yarn tenacity. Ideal handling of the fibers guarantees more consistent yarn quality.

With AMIspin technology, outstanding piecing quality can be achieved. The optional AMIspin-Pro technology offers even higher standards of quality as well as increased success rates in piecings.

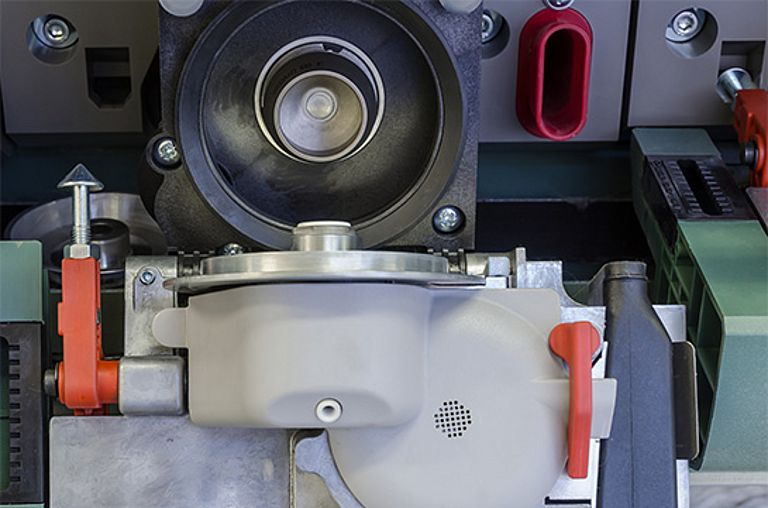

R 37 rotor spinning machine spin boxes

Two lots on one machine

On the R 37 with fully independent machine sides two lots can be spun simultaneously. Two package conveyor belts prevent lots from being mixed up.

All setting parameters for the machine and the optional yarn clearer Q 30 can be adjusted on the large and easily understandable operating unit. Clearers with foreign fiber detection are available as option.

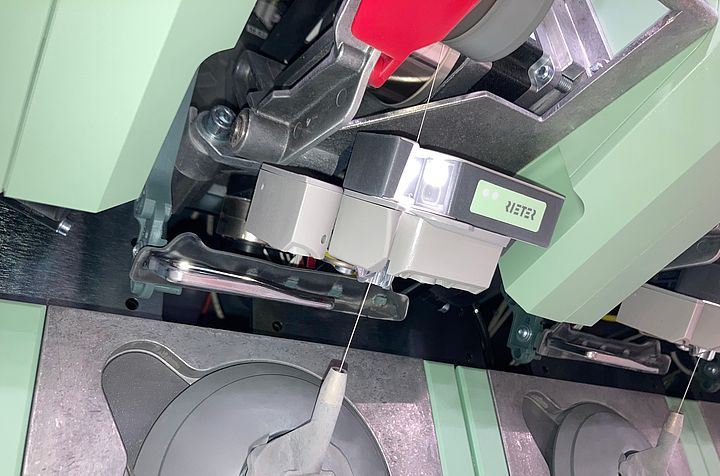

  • Yarn Clearer Q30

    Yarn Clearer Q 30: Key to High-Quality Yarns and Efficient Production

    The yarn clearer Q 30 for rotor and air-jet spinning ensures top yarn quality, longer production times, and less maintenance, thanks to advanced detection technology.

    Explore

What customers say about the R 37

Enzhong Lv, Nuogao Fiber General Manager
Feedback from our downstream customers indicates that fabrics made from R 37 rotor yarn feature a smoother surface, enhanced softness, and a marked improvement in overall quality.Enzhong Lv, Nuago Fiber General Manager
Ailong Zhou, Haoshun Textile Chief Engineer
The yarn produced by the R 37 has a unique structure, resulting in a fuller fabric appearance and a softer hand feel of our wool fabrics. It achieves lower twist levels without compromising yarn strength.Ailong Zhou, Haoshun Textile Chief Engineer

Technical specification

Dimensions

Machine specificationSpinning unitsSectionsLM Machine length [mm]HM Machine heigh [mm]WM Machine width [mm]
Base machine, 2 sections402LM = 10 0651 8801 660
Additional section
(Max. machine length 30 sections)		201LS = 2 350--

Technological data

ParameterRange/Unit
MaterialNatural and man-made fibers up to 60 mm length
Sliver countNm 0.125 – 0.31; Ne 0.074 – 0.184; ktex 8 – 3.2
Range of yarn countsNm 3.34 – 69; Ne 2.0 – 40; tex 300 – 14.5
Draft25 – 300 fold
Yarn twist80 – 2 200 T/m
Delivery speedup to 200 m/min
Crossing angleAdjustable from 30° to 40° in 1° steps

Machine data

FeatureDescription
DesignDouble sided semi-automated rotor spinning machine with independent driven machine sides and with two separate package transport belts
Gauge230 mm
Number of spinning units20 per section; maximum 600 spinning units (30 sections)
Can diameterup to 400 mm (16") in two rows under the machine
up to 500 mm (20") in three rows
Can height915 mm (36"), 1 070 mm (42") and 1 200 mm (48")
Package sizeCylindrical package up to 320 mm or 4.5 kg
Conical package 1°51 up to 320 mm or 4.2 kg
Waxing deviceOnline application of wax to the produced yarn, with individual drive on each spinning position
PiecingAMIspin or AMIspi-Pro* with front yarn entry and loop compensation
Yarn quality monitoring Rieter yarn clearer Q 30 for monitoring yarn as well as piecing quality
Rieter yarn clearer Q 30AF with optical foreign fiber detection*
ESSENTIALMill management system
Rotor speedWith frequency converter 25 000 – 120 000 rpm
Opening roller speedAdjustable 7 000 – 10 000 rpm, with frequency converter* 6 000 – 10 000 rpm
Delivery speedup to 200 m/min with full machine length (cyl. packages, up to 36° winding angle)
Max. 180 m/min for conical packages
Frequency inverterInfinitely variable adjustment of sliver feed, delivery speed, winding speed, central vacuum for technological air and trash, rotor and opening roller*
Arm-liftingAutomatic lifting and fast turning stop of the package after yarn break
Yarn break sensorFor immediate interruption of feeding in the event of yarn break
AUTOvacAutomatic levelling of spinning vacuum
Waste collectionFor easy removal in filter chamber at end stock. Alternatively prepared for central waste collection*
BlowerFor cleaning of the machine*
VARIOspin fancy yarn applicationFor production of fancy (slub) yarn.*
Rotor driveFrequency inverter controlled with tangential belt, up to 120 000 rpm
Rotors33 to 68 mm with rotor grooves in various designs
Opening rollers64 mm diameter
NozzlesCeramic and steel nozzles in various designs
TWISTstopCeramic type elements in 3 designs U-Segment, V-Segment and TWIST FIX
InsertExchangeable elements (three types) for adaption to the rotor diameter
Trash channelExchangeable elements to adapt for different levels of trash extraction
Fiber channelExchangeable
ROBOdoffDevice for automated package exchange
* Option

Automation

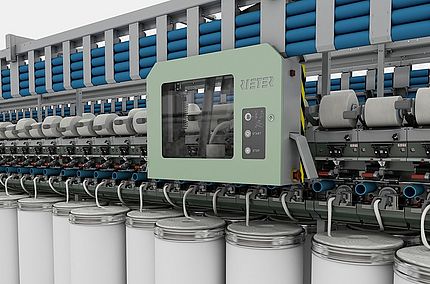

  • R 37 rotor spinning machine with ROBOdoff
